Tracing

Scenarios

In the Native SDK we have the following scenarios, showcasing how trace-context data flows:

Tracing without Performance

In Tracing without Performance (TwP) the SDK does not create spans. However, we still want to connect events across boundaries so we use a propagation_context to store the relevant data (a trace_id and a span_id) which gets generated during SDK initialization. This propagation_context can be updated by calling sentry_set_trace(), for example from a downstream SDK.

Tracing with Performance

When any traces sampling option is enabled, the SDK can send spans. Just like in TwP, we still use a propagation_context to store the relevant data (a trace_id and a span_id). Now, events and spans can be connected through a common trace_id and, if a span is scoped, it will additionally be connected hierarchically to the event through its span_id. By default, both spans and events will inherit the trace_id from the propagation_context as generated during SDK initialization.

Downstream SDKs are still able to use sentry_set_trace(), which updates the propagation_context with a new trace_id, span_id and parent_span_id. Root spans (=transactions) will pick up the data currently in the propagation_context, which can still be overwritten by sentry_transaction_context_update_from_header() before the span is started. Child spans will inherit the trace data from their parent. While a span is scoped, any event will use that span's data. If no spans are scoped, events will just use the propagation_context data directly.

Visualization

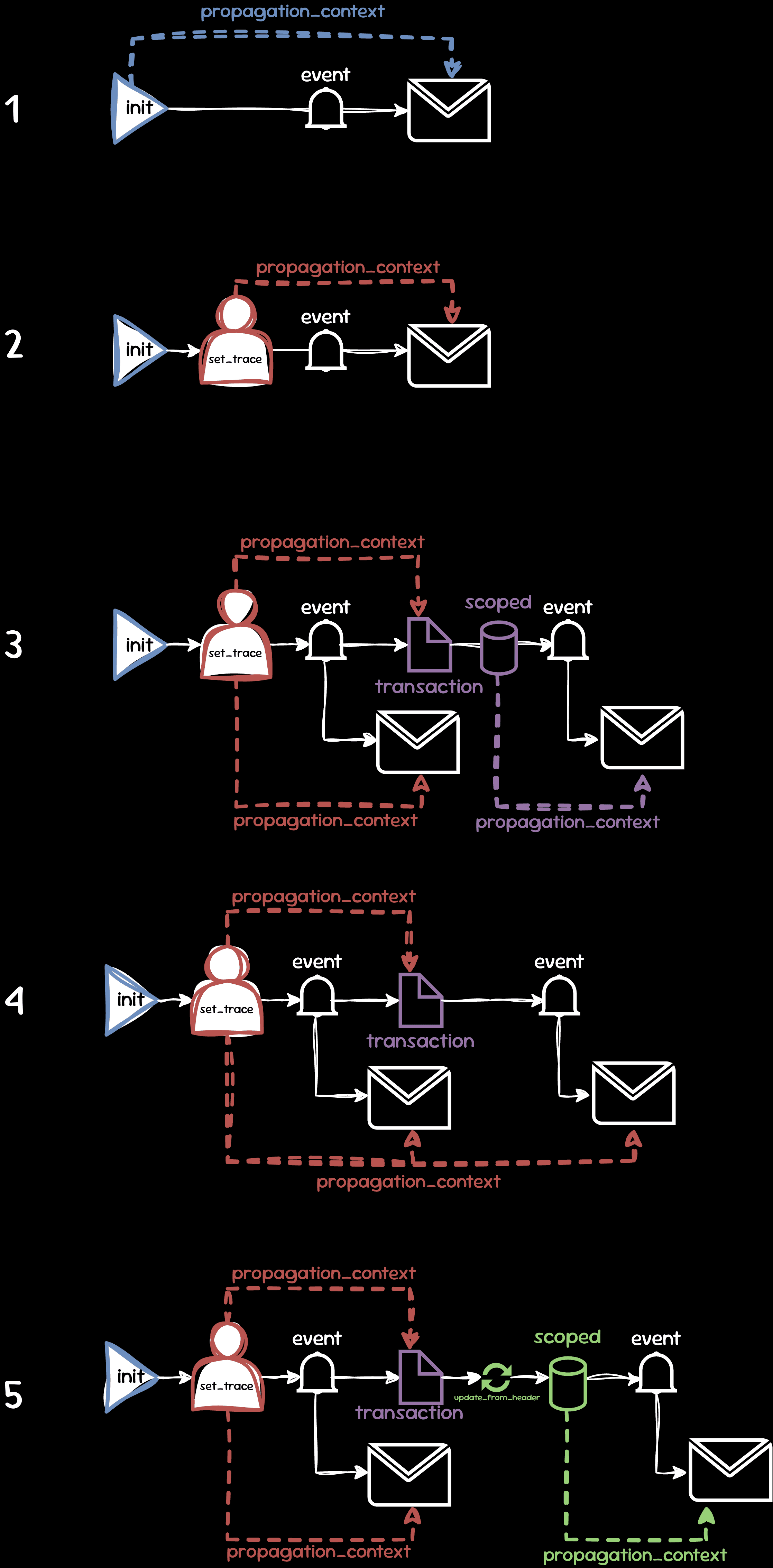

The flow of the trace-context (via the propagation_context) can be visualized for the following scenarios:

1. The SDK initializes propagation_context with a trace_id and span_id. The event sent will use this data.
2. The SDK initializes propagation_context with a trace_id and span_id, which gets overwritten by sentry_set_trace(). The event sent will use this updated data.
3. The SDK initializes propagation_context with a trace_id and span_id, which gets overwritten by sentry_set_trace(). The event sent will use this updated data. Now, a transaction is created, which uses the propagation_context data. Since the transaction is started and scoped, any event sent while it is scoped will use the transaction's data (which has the same trace_id as the propagation_context, but its own span_id).
4. The SDK initializes propagation_context with a trace_id and span_id, which gets overwritten by sentry_set_trace(). The event sent will use this updated data. Now, a transaction is created, which uses the propagation_context data. Since the transaction is started and not scoped, any event sent will use the propagation_context data. The transaction and event will still have the same trace_id, but different span_ids.
5. The SDK initializes propagation_context with a trace_id and span_id, which gets overwritten by sentry_set_trace(). The event sent will use this updated data. Now, a transaction is created, which uses the propagation_context data. It gets updated by sentry_transaction_context_update_from_header(), setting a new trace_id. Since the transaction is started and scoped, any event sent while it is scoped will use the transaction's data, which now differs from the propagation_context data.
